NP Series-Guangdong Zhicheng Champion Group Co., Ltd._ Battery

CHAMPION NP Series 6V & 12V batteries have special sealed and valve regulated construction. All the acid inside the battery is suspended in a formulated non-woven glass mat separator and it is absorbed in the manner. This construction ensure leakproof during normal operation.

SPECIFICATION

Battery Model	Specification	Dimensions(mm)				Weight Kg±0.2Kg (Approx)	Capacity (AH) @ 25℃, 1.75V/Cell
Battery Model	Specification	L ±1	W ±1	H1 ±2	H2 ±2	Weight Kg±0.2Kg (Approx)	1HR	3HR	5HR	10HR	20HR
NP1.3-6	6V1.3AH	97	24	51	56	0.31	0.78	1.02	1.1	1.2	1.3
NP3.3-6	6V3.3AH	135	35	60	65	0.64	1.81	2.48	2.81	3.1	3.3
NP4-6	6V4AH	70	47	101	106	0.78	2.3	3.05	3.4	3.8	4.0
NP4.5-6	6V4.5AH	70	47	101	106	0.82	2.65	3.4	3.83	4.2	4.5
NP5-6	6V5AH	70	47	101	106	0.94	3.0	3.8	4.3	4.8	5.0
NP7-6	6V7AH	151	34	94	98	1.18	4.0	5.3	6.0	6.8	7.0
NP7.5-6	6V7.5AH	151	34	94	98	1.20	4.1	5.6	6.4	7.2	7.5
NP10-6	6V10AH	151	50	95	99	1.70	5.6	7.6	8.5	9.5	10.0
NP12-6	6V12AH	151	50	95	99	1.87	7.0	9.1	10.5	11.0	12.0
NP63-6	6V63AH	185	113	205	205	10.5	36.0	47.0	55.0	63.0	66.0
NP120-6	6V120AH	195	170	206	209	17.0	70.0	92.0	105.0	120.0	125.0
NP180-6	6V180AH	306	168	220	225	28.7	105.0	140.0	155.0	180.0	200.0
NP200-6	6V200AH	323	178	225	229	30.2	115.0	152.0	172.0	200.0	220.0
NP1.3-12	12V1.3AH	97	44	52	56	0.61	0.78	1.02	1.1	1.2	1.3
NP2.2-12	12V2.2AH	178	35	61	65	1.00	1.25	1.65	1.85	2.0	2.2
NP3.3-12	12V3.3AH	135	67	61	66	1.30	1.81	2.48	2.8	3.0	3.3
NP4-12	12V4AH	90	70	102	106	1.52	2.3	3.05	3.45	3.8	4.0
NP4.5-12	12V4.5AH	90	70	102	106	1.70	2.65	3.4	3.83	4.2	4.5
NP5-12	12V5AH	90	70	102	106	1.90	3.0	3.8	4.3	4.8	5.0
NP5-12 L	12V5AH	151	51	93	99	2.00	3.0	3.8	4.3	4.8	5.0
NP6-12	12V6AH	151	65	94	99	2.15	3.3	4.5	5.1	5.7	6.0
NP7-12	12V7AH	151	65	94	99	2.30	4.2	5.4	6.1	6.8	7.0
NP7.5-12	12V7.5AH	151	65	94	99	2.40	4.5	5.7	6.5	7.2	7.5
NP8-12	12V8AH	151	65	94	99	2.50	4.6	6.0	6.8	7.5	8.0
NP9-12	12V9AH	151	65	94	99	2.60	5.0	6.8	7.7	8.5	9.0
NP12-12	12V12AH	151	98	98	102	3.80	7.0	9.1	10.5	11.0	12.0
NP14-12	12V14AH	151	98	98	102	4.10	8.0	10.6	12.0	13.0	14.0
NP18-12	12V18AH	181	76	165	165	5.40	9.9	13.5	15.3	17.0	18.0
NP20-12	12V20AH	181	76	165	165	7.50	12.0	15.3	17.5	18.5	20.0
NP24-12	12V24AH	177	167	125	125	8.00	13.5	18.5	21.0	22.5	24.0
NP26-12	12V26AH	165	126	176	176	8.1	14.8	19.5	22.0	24.0	26.0
NP28-12	12V28AH	166	125	175	175	9.7	15.5	21.0	24.0	26.0	28.0
NP33-12	12V33AH	196	131	155	166	10.5	18.3	25.0	28.2	32.0	33.0
NP38-12	12V38AH	197	165	170	170	13.3	22.0	29.0	33.0	38.0	40.0
NP44-12	12V44AH	197	165	170	170	14.5	24.2	35.0	39.5	44.0	46.0
NP55-12	12V55AH	228	137	208	227	18.6	32.0	43.0	47.5	55.0	58.0
NP65-12	12V65AH	350	168	179	179	21.3	38.0	50.0	57.0	65.0	68.0
NP70-12	12V70AH	259	168	208	213	22.0	41.0	54.0	61.0	70.0	73.0
NP80-12	12V80AH	259	168	208	231	24.0	45.0	61.0	69.0	80.0	85.0
NP90-12	12V90AH	307	169	208	213	26.8	51.0	69.0	78.0	90.0	100.0
NP100-12	12V100AH	328	172	214	219	30.5	59.0	78.0	88.0	100.0	110.0
NP110-12	12V110AH	328	172	214	219	31.2	61.0	79.0	90.0	110.0	120.0
NP120-12	12V120AH	409	177	225	225	36.0	70.0	92.0	105.0	120.0	130.0
NP135-12	12V135AH	341	172	282	288	41.8	75.0	102.0	115.0	135.0	148.0
NP150-12	12V150AH	483	170	241	241	44.5	87.0	115.0	130.0	150.0	165.0
NP160-12	12V160AH	532	207	214	240	53.4	90.0	122.0	140.0	160.0	176.0
NP180-12	12V180AH	532	207	214	240	56.3	105.0	140.0	155.0	180.0	198.0
NP200-12	12V200AH	522	240	218	244	61.5	115.0	152.0	172.0	200.0	220.0
NP230-12	12V230AH	521	269	203	206	66.0	127.0	172.5	196.0	230.0	250.0
NP240-12	12V240AH	521	269	203	206	67.0	135.0	182.0	206.0	240.0	260.0
NP250-12	12V250AH	520	269	220	223	76.0	140.0	190.0	215.0	250.0	270.0

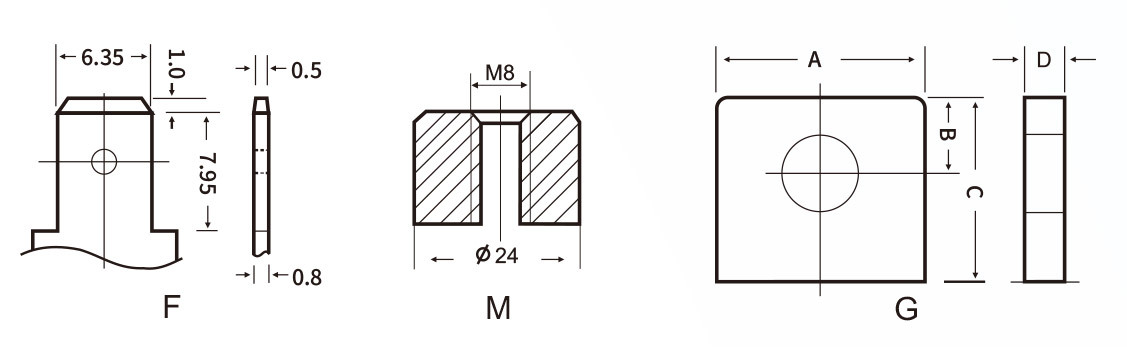

Terminal size (mm)

Models	A	B	C	D
NP17-12	12	5	14	3
NP24-12	13	4.5	14	5
NP38-12	16	7.5	17	7
NP65-12	22.5	7.5	17.5	7.5
NP100-12	25	11.5	25	7.5
NP200-12	25	11.5	25	8.5
GM Series	25	12.5	37	10

Terminal Type
